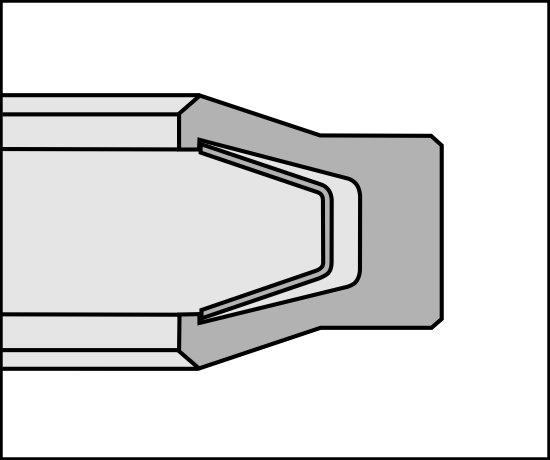

Lip seal with spring 1V6
Lip seal with u-spring, for flanges or rotary joints with inside pressure.
Application Range
Pressure: ≤ 350 bar
Temperature: -120 °C / +225 °C
Standard Material: PTFE-comp.
Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.
Load product catalog Material Code
Material Code for PTFE Lips Seals with Spring
| Material of Lip Seal | Material of Profiled Spring | Material of Filling |
|---|---|---|
| Material of Lip SealPTFE/Carbon (89T) | Material of Profiled Spring1.4310 | Material of Filling– |
| Material of Lip Sealmod. PTFE (25T) | Material of Profiled Spring1.4310 | Material of Filling– |
| Material of Lip Sealmod. PTFE (91T) | Material of Profiled Spring1.4310 | Material of Filling– |
| Material of Lip SealPTFE, pure (00T) | Material of Profiled Spring1.4310 | Material of Filling– |
| Material of Lip SealPTFE/Carbon (05T) | Material of Profiled Spring1.4310 | Material of Filling– |
| Material of Lip SealPE (03M) | Material of Profiled Spring1.4310 | Material of Filling– |
| Material of Lip SealPTFE/Ekonol (22T) | Material of Profiled Spring1.4310 | Material of Filling– |
| Material of Lip SealPTFE/Carbon Fibre (31T) | Material of Profiled Spring1.4310 | Material of Filling– |
| Material of Lip SealPTFE/PEEK (52T) | Material of Profiled Spring1.4310 | Material of Filling– |
| Material of Lip SealPTFE/Graphite (90T) | Material of Profiled Spring1.4310 | Material of FillingSilicone |
| Material of Lip SealPTFE/Carbon Fibre (31T) | Material of Profiled Spring1.4310 | Material of FillingSilicone |
| Material of Lip SealPTFE/Carbon (05T) | Material of Profiled Spring1.4310 | Material of FillingSilicone |
| Material of Lip SealPTFE/Ekonol (22T) | Material of Profiled Spring1.4310 | Material of FillingSilicone |
| Material of Lip Sealmod. PTFE (25T) | Material of Profiled Spring1.4310 | Material of FillingSilicone |
| Material of Lip SealPE (03M) | Material of Profiled Spring1.4310 | Material of FillingSilicone |
| Material of Lip SealPTFE/PEEK (52T) | Material of Profiled Spring1.4310 | Material of FillingSilicone |
| Material of Lip SealTFM (36T) | Material of Profiled Spring1.4310 | Material of FillingSilicone |
