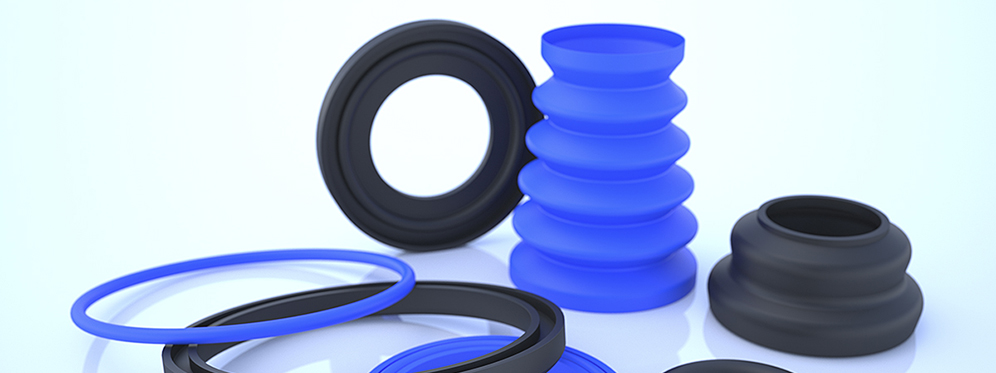

Moulded Parts for the Food Industry

are used for axial sealing in filling, transporting and damping the kinetic energy of vessels. A wide variety of materials are available depending on the temperature range and medium.

Moulded Parts for the Food Industry

We manufacture a wide range of components for your systems to suit your application. Depending on the temperature range and medium, a wide variety of materials are available – such as PUR, EPDM or silicones, also with foodstuff approvals according to FDA and EU directives as well as in detectable versions. Sterilisation and cleaning processes such as SIP and CIP are also no problem.

Typical products that we supply from this area include packing and centring bells, spreaders for beverage filling, pressure gasket rings, centring rings and complex special parts to drawing. Depending on the material, various colours are also possible.

Anlaufscheibe FGA

Thrust Washer FGA

Thrust washer of a metal composite and a sliding layer of POM and round lubrication pockets.

Application Range
Temperature: -40 °C / +90 °C (temporarily to +130 °C)
Sliding Speed: ≤ 2,5 m/s
Standard Material: Metal composite and POM

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Führungsband FB3

Guide Strip FB3

Guide strip with very good sliding characteristics and stick-slip free run, for light to medium-duty oil hydraulics. Available also with lubrication pockets. Cut goods.

Application Range
Standard Material: PTFE/carbon (0005T)
Temperature: -100 °C / +200 °C
Sliding Speed: ≤ 5 m/s

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Radialgleitlager FE4

Radial Slide Bearing FE4

Radial slide bearing with graphite, self lucrication.

Application Range
Temperature: ≤ +250 °C
Sliding Speed: ≤ 2 m/s
Standard Material: Tin bronze, graphite

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Gleitlager FE6

Slide Bearing FE6

Slide bearing made of sintered metal, oil impregnated.

Application Range
Temperature: -40 °C / +80 °C
Sliding Speed: ≤ 7 m/s
Standard Material: Sintered Metal

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Radialgleitlager FD2

Radial Slide Bearing FD2

Radial slide bearing with flange, of a metal composite and a sliding layer of PTFE/lead for maintenance-free operation, general applications.

Application Range
Temperature: -200 °C / +280 °C
Sliding Speed: ≤ 2 m/s
Standard Material: 0007K

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Hartgewebe-Führungsringe FÜS2

Compound Fabric Wear Rings FÜS2

Compound Fabric Wear Rings with stair cut are mainly used in hydraulics and machine building. They perform the function of guiding pistons in cylinders, prevent them from making metallic contact and absorb radial forces. In the material POM also available in special dimensions at short notice from routine production.

Application Range
Temperature: -50 °C / +120 °C
Sliding Speed: ≤ 0,5/0,8 m/s (depends on the amterial selected)

Materials:
- Synthetic woven fabric with a modified phenolic resin impregnated (2000K)
- Phenolic resin impregnated cotton fabric (1000K)
- Phenolic resin impregnated fine cotton fabric (0051K)
- Resin impregnated plastics fabric with PTFE additives (1030 - 0052K)
- Resin impregnated plastics fabric with graphite additives (0942 - 0052K)

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Hartgewebe-Führungsringe FÜA

Wear Rings FÜA

Compound Fabric Wear Rings, straight slot, are mainly used in hydraulics and machine building. They perform the function of guiding rods and pistons, prevent them from making metallic contact and absorb radial forces. In the material POM also available in special dimensions at short notice from routine production.

Application Range
Temperature: -50 °C / +120 °C
Sliding Speed: ≤ 0,5/0,8 m/s (depends on the amterial selected)

Materials:
- Synthetic woven fabric with modified phenolic resin impregnated (2000K)
- Phenolic resin impregnated cotton fabric (1000K)
- Phenolic resin impregnated fine cotton fabric (0051K)
- Resin impregnated plastics fabric with PTFE additives (1030 - 0052K)
- Resin impregnated plastics fabric with graphite additives (0942 - 0052K)

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Hartgewebe-Führungsbänder FB8

Compound Fabric Guide Strips FB8

Compound fabric guide strips, wrapped (coil), perform the function of guiding pistons and piston rods in hydraulic applications. They absorb the radial forces and protect the rod and cylinder from making metallic contact. Cut goods up to 5700 mm or on custom cutting.

Application Range
Temperature: -50 °C / +120 °C
Sliding Speed: ≤ 0,8 m/s

Materials:
- Synthetic woven fabric with modified phenolic resin impregnated (T200K)
- Plastics fabric impregnated with mod. phenolic resin (T550K)

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Führungsringe FÜ1

Guide Rings FÜ1

Guide rings FÜ1 are open piston guide rings with a mounting collar on the inside diameter and axial grooves for pressure relief.

Application Range
Temperature: -40 °C / +100 °C (max. +60 °C in water)
Sliding Speed: ≤ 5 m/s
Standard Material: polyamide (0040A)

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Radialgleitlager FE5

Radial Slide Bearing FE5

Radial slide bearing with flange, with graphite, self lucrication.

Application Range
Temperature: ≤ +250 °C
Sliding Speed: ≤ 2 m/s
Standard Material: Tin bronze, graphite

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Gleitlager FE2

Slide Bearing FE2

Slide bearing with round lubrication pockets for high bearing loads and rough operation.

Application Range
Temperature: -100 °C / +200 °C
Sliding Speed: ≤ 2 m/s
Standard Material: Tin bronze

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Hartgewebe-Führungsringe FÜS

Compound Fabric Wear Rings FÜS

Compound Fabric Wear Rings with stair cut are mainly used in hydraulics and machine building. They perform the function of guiding rods and pistons in cylinders, prevent them from making metallic contact and absorb radial forces. In the material POM also available in special dimensions at short notice from routine production.

Application Range
Temperature: -50 °C / +120 °C
Sliding Speed: ≤ 0,5/0,8 m/s (depends on the amterial selected)

Materials:
- Synthetic woven fabric with a modified phenolic resin impregnated (2000K)
- Phenolic resin impregnated cotton fabric (1000K)
- Phenolic resin impregnated fine cotton fabric (0051K)
- Resin impregnated plastics fabric with PTFE additives (1030 - 0052K)
- Resin impregnated plastics fabric with graphite additives (0942 - 0052K)

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Gleitlager FE7

Slide Bearing FE7

Slide bearing made of sintered metal, oil impregnated.

Application Range
Temperature: -40 °C / +80 °C
Sliding Speed: ≤ 7 m/s
Standard Material: Sintered Metal

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Gleitlager FE3

Slide Bearing FE3

Slide bearing without lubrication pockets, for high bearing loads.

Application Range
Temperature: -100 °C / +200 °C
Sliding Speed: ≤ 2 m/s
Standard Material: Tin bronze

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Hartgewebe-Führungsringe FÜA1

Wear Rings FÜA1

Compound Fabric Wear Rings, straight slot, are mainly used in hydraulics and machine building. They perform the function of guiding rods, prevent them from making metallic contact and absorb radial forces. In the material POM also available in special dimensions at short notice from routine production.

Application Range
Temperature: -50 °C / +120 °C (depends on the material selected)
Sliding Speed: ≤ 0,5/0,8 m/s (depends on the material selected)

Materials:
- Synthetic woven fabric with a modified phenolic resin impregnated (2000K)
- Phenolic resin impregnated cotton fabric (1000K)
- Phenolic resin impregnated fine cotton fabric (0051K)
- Resin impregnated plastics fabric with PTFE additives (1030 - 0052K)
- Resin impregnated plastics fabric with graphite additives (0942 - 0052K)

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Gleitlager FE1

Slide Bearing FE1

Slide bearing with diamond-shaped lubrication pockets, for high bearing loads and rough operation.

Application Range
Temperature: -100 °C / +200 °C
Sliding Speed: ≤ 2 m/s
Standard Material: Tin bronze

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Führungsringe FÜB2

Wear Rings FÜB2

Compound Fabric Wear Rings, oblique slot, are mainly used in hydraulics and machine building. They perform the function of guiding pistons, prevent them from making metallic contact and absorb radial forces. In the material POM also available in special dimensions at short notice from routine production.

Application Range
Temperature: -50 °C / +120 °C
Sliding Speed: ≤ 0,5/0,8 m/s (depends on the amterial selected)

Materials:
- Synthetic woven fabric with a modified phenolic resin impregnated (2000K)
- Phenolic resin impregnated cotton fabric (1000K)
- Phenolic resin impregnated fine cotton fabric (0051K)
- Resin impregnated plastics fabric with PTFE additives (1030 - 0052K)
- Resin impregnated plastics fabric with graphite additives (0942 - 0052K)

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Gleitlager FG1

Slide Bearing FG1

Slide bearing of a metal composit with a sliding layer of POM and round lubrication pockets.

Application Range
Temperature: -40 °C / +90 °C (temporarily to +130 °C)
Sliding Speed: ≤ 2,5 m/s
Standard Material: Metal composite and POM

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Anlaufscheibe FDA

Thrust Washer FDA

Thrust washer of a metal composite and a sliding layer of PTFE/lead for maintenance-free operation, general applications.

Application Range
Temperature: -200 °C / +280 °C
Sliding Speed: ≤ 2 m/s
Standard Material: 0007K

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Hartgewebe-Führungsringe FÜS1

Compound Fabric Wear Rings FÜS1

Compound Fabric Wear Rings with stair cut are mainly used in hydraulics and machine building. They perform the function of guiding rods in cylinders, prevent them from making metallic contact and absorb radial forces. In the material POM also available in special dimensions at short notice from routine production.

Application Range
Temperature: -50 °C / +120 °C
Sliding Speed: ≤ 0,5/0,8 m/s (depends on the amterial selected)

Materials:
- Synthetic woven fabric with a modified phenolic resin impregnated (2000K)
- Phenolic resin impregnated cotton fabric (1000K)
- Phenolic resin impregnated fine cotton fabric (0051K)
- Resin impregnated plastics fabric with PTFE additives (1030 - 0052K)
- Resin impregnated plastics fabric with graphite additives (0942 - 0052K)

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Führungsringe FÜB

Wear Rings FÜB

Wear ring, oblique slot, for rods and pistons in hydraulic, machine-building and chemical applications. In the material POM also available in special dimensions at short notice from routine production.

Application Range
Temperature: -50 °C / +120 °C
Sliding Speed: ≤ 0,5/0,8 m/s (depends on the amterial selected)

Materials:
- Synthetic woven fabric with a modified phenolic resin impregnated (2000K)
- Phenolic resin impregnated cotton fabric (1000K)
- Phenolic resin impregnated fine cotton fabric (0051K)
- Resin impregnated plastics fabric with PTFE additives (1030 - 0052K)
- Resin impregnated plastics fabric with graphite additives (0942 - 0052K)

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Gleitband FDL

Slide Band FDL

Slide band of a metal composite and a sliding layer of PTFE/lead for maintenance-free operation, general applications.

Application Range
Temperature: -200 °C / +280 °C
Sliding Speed: ≤ 2 m/s
Standard Material: 0007K

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Führungsband FB2

Guide Strip FB2

Guide strip with chamfer, very good sliding characteristics and stick-slip free run, for pneumatics and light to medium-duty water hydraulics, chemical and foodstuff applications. Available also with lubrication pockets. Cut goods.

Application Range
Standard Material: PTFE/carbon (0005T)
Temperature: -100 °C / +200 °C
Sliding Speed: ≤ 5 m/s

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Hartgewebe-Führungsbänder FB9

Compound Fabric Guide Strips FB9

Compound fabric guide strips, spiralised (helix), perfom the function of guiding pistons and piston rods in hydraulic applications. They absorb the radial forces and protect the rod and cylinder from making metallic contact. Cut goods up to 5700 mm or on custom cutting.

Application Range
Temperature: -50 °C / +120 °C
Sliding Speed: ≤ 0,8 m/s
Standard Material: T550K

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Hartgewebe-Führungsringe FÜA2

Wear Rings FÜA2

Compound Fabric Wear Rings, straight slot, are mainly used in hydraulics and machine building. They perform the function of guiding pistons, prevent them from making metallic contact and absorb radial forces. In the material POM also available in special dimensions at short notice from routine production.

Application Range
Temperature: -50 °C / +120 °C
Sliding Speed: ≤ 0,5/0,8 m/s (depends on the material selected)

Materials:
- Synthetic woven fabric with a modified phenolic resin impregnated (2000K)
- Phenolic resin impregnated cotton fabric (1000K)
- Phenolic resin impregnated fine cotton fabric (0051K)
- Resin impregnated plastics fabric with PTFE additives (1030 - 0052K)
- Resin impregnated plastics fabric with graphite additives (0942 - 0052K)

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Radialgleitlager FD1

Radial Slide Bearing FD1

Radial slide bearing of a metal composite and a sliding layer of PTFE/lead for maintenance-free operation, general applications.

Application Range
Temperature: -200 °C / +280 °C
Sliding Speed: ≤ 2 m/s
Standard Material: 0007K

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Führungsringe FÜB1

Wear Rings FÜB1

Compound Fabric Wear Rings, oblique slot, are mainly used in hydraulics and machine building. They perform the function of guiding rods, prevent them from making metallic contact and absorb radial forces. In the material POM also available in special dimensions at short notice from routine production.

Application Range
Temperature: -50 °C / +120 °C
Sliding Speed: ≤ 0,5/0,8 m/s (depends on the amterial selected)

Materials:
- Synthetic woven fabric with a modified phenolic resin impregnated (2000K)
- Phenolic resin impregnated cotton fabric (1000K)
- Phenolic resin impregnated fine cotton fabric (0051K)
- Resin impregnated plastics fabric with PTFE additives (1030 - 0052K)
- Resin impregnated plastics fabric with graphite additives (0942 - 0052K)

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Contact

Contact Do you have any questions about our products or would you like to send us a message?

Feel free to contact us! Tel: 0201 86606-0

Tel: +49(0)201 86606-0

To the contact form
